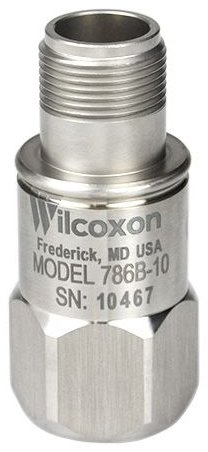

The Wilcoxon Sensing Technologies 786B-10 general purpose accelerometer is designed for long-term, reliable use. It is constructed with corrosion-resistant 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The 786B-10 is case isolated and internally shielded and features reverse wiring protection.

The 786B-10 is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 100mV/g sensitivity
• ±10% sensitivity tolerance
• 80g peak acceleration range
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±10%: 1 to 9,000Hz
  • ±3 dB: 0.5 to 14,000Hz
• 30kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• Hermetic sealing
• PZT, shear sensing element design
