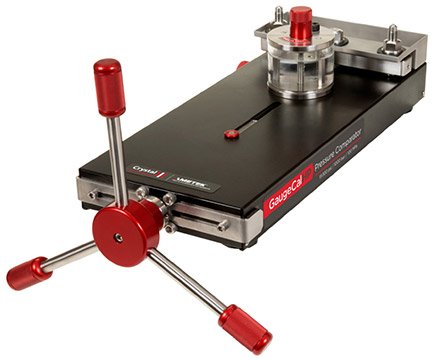

The Ametek Crystal GaugeCalHP Pressure Comparator is a self-contained, precision hydraulic pressure comparator, designed for the calibration of pressure gauges, transmitters and devices rated up to 15000 psi / 1000 bar / 100 MPa. It supports filling with user-selected water or light hydraulic oil for flexible field and laboratory operation.

The GaugeCalHP delivers significantly faster calibration than deadweight testers and most automated pressure controllers. Most gauges, transmitters, pressure safety valves, sensors, and switches can be fully calibrated in less than 10 minutes (covering 5 to 10 test points with both increasing and decreasing pressure) via standard operating procedures.

The GaugeCalHP hydraulic comparator can be ordered as part of a complete Pump System, bundled with a Crystal Pressure Indicator. These turnkey pump systems include the most commonly used pressure fittings, seals, and accessories, all packaged in a durable carrying case with a custom foam insert for secure transport and organized storage.

Features

• Full operating pressure range:
  • Hydraulic pressure up to 15000 psi / 1000 bar / 100 MPa
  • Vacuum capability down to -12.5 psi / -0.86 bar / -86.2 kPa
• Wetted materials: 316 stainless steel, high-performance seals, and acrylic reservoir
• Rugged anodized aluminum enclosure for field and lab use
• Generates up to 400 inches H₂O without fluid, for low-pressure pneumatic calibration
• Compatible with water, light hydraulic oil, or air as the pressure medium
• Suitable for calibrating differential pressure transmitters, pressure gauges, transmitters, safety valves, sensors and switches
• Fast calibration cycle, completing 5-10 test points in under 10 minutes
• Available as a complete turnkey pump system with pressure indicator, fittings and carrying case
