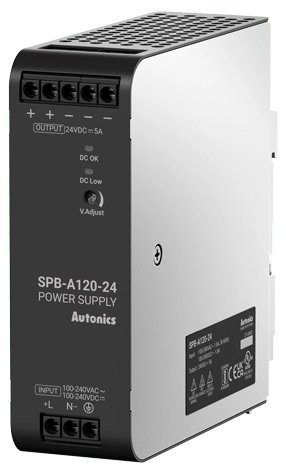

The Autonics SPB-A SeriesPower Supply allows space-saving installation with a slim and compact design. The supply provides easy and secure connection with rising clamp type terminals, along with stable performance over a wide temperature range. The SPB-A can be mounted on a 35mm DIN rail conforming to EN 60715 standards, and provides excellent environmental protection.

If excessive voltage of about 130% or more of the rated voltage is output, the output is cut off to protect the connected load. When the output is disconnected, the power should not be reapplied for at least 5 minutes.

When the overcurrent exceeding 121% of the rated current is flowed, the overcurrent protection circuit is operated to protect the product by reducing output voltage. The protection circuit is released automatically when the load current is under the rated current.

The output voltage is also cut off when the device's internal temperature reaches about 284°F due to overheating.

Features

• Input voltage:
  • 100 to 240VAC~/90 to 350VDC
  • Allowable voltage: 85 to 264VAC
• 0.3 to 0.5Nm torque
• Improved power factor with PFC circuit
• Advanced environmental protection:
  • Overcurrent/overvoltage protection
  • Overheating prevention
  • Wide temperature range
• Low output voltage indicator (red LED), output indicator (green LED)
• Compact size for maximum space efficiency
