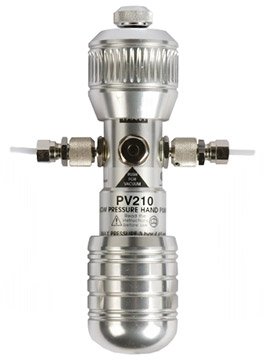

The Druck PV210 is a lightweight, rugged pneumatic hand pump designed for low-pressure and vacuum calibration applications. It generates pressures from 0 to 45 psi (0 to 3 bar) and vacuum to 27 inHg, making it ideal for calibration checks on pressure transmitters, switches, indicators, recorders, and controllers.

The pump features a thermally insulated design that eliminates hand-held temperature effects, ensuring stable pressure generation. A built-in pressure relief valve protects sensitive test instruments, adjustable from 20 inH₂O up to maximum pressure. The fine adjust vernier provides precise control down to 0.01 inH₂O (0.1 mbar).

Finger-tight quick-fit connectors allow easy connection and disconnection without tools. The pump includes two 3-foot nylon hoses with 1/4 NPT female adapters. An optional accessory kit adds a hard carrying case with foam cutouts and a 6-piece NPT adapter set (4 female: 1/8, 1/4, 3/8, 1/2 inch; 2 male: 1/8, 1/4 inch).

The PV210 can also function as a portable pressure comparator when used with various pressure indicating devices. Its compact dimensions (6.7 × 1.8 inches) and light weight (1.3 lb) make it highly portable for field use. Maximum adapter torque is 11 ft-lb.

Features

• Pressure range: 0 to 45 psi (0 to 1250 inH₂O)
• Vacuum range: 0 to 27 inHg
• Precise fine control: 0.01 inH₂O via vernier
• Thermally insulated - eliminates hand temperature effects
• Built-in adjustable pressure relief valve (20 inH₂O to max)
• Dual source of pneumatic pressure and vacuum
• Finger-tight quick-fit connectors
• Includes two 3 ft nylon hoses with 1/4 NPT adapters
• Optional accessory kit with carrying case and NPT adapters
• Lightweight: 1.3 lb (0.6 kg)
