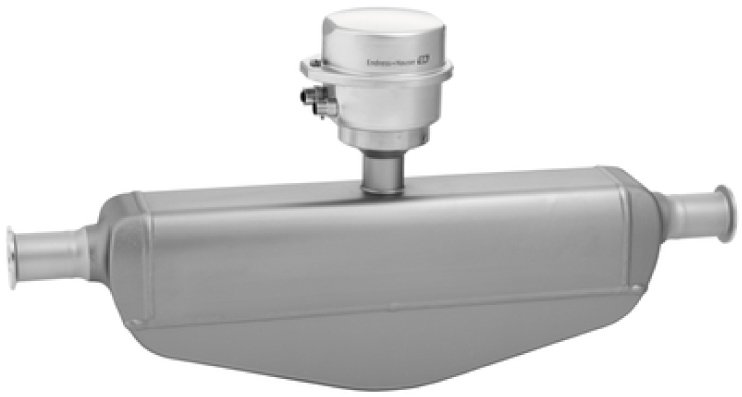

Hygienic Coriolis Flow Meter - Self-Drainable, Remote 4 I/O | E+H Proline Promass S 500

1 / 5

Product Specifications

Manufacturer:Endress+Hauser

Product Number:Proline Promass S 500 / 8S5B

Type:Hygienic Coriolis Flow Meter

Nominal Diameter:DN 8 to 50 (3/8 to 2in)

Mass Flow Accuracy (Liquid):±0.10%

Volume Flow Accuracy (Liquid):±0.10%

Density Accuracy (Liquid):±0.0005 g/cm³

Measuring Range:0 to 70,000 kg/h (0 to 2570 lb/min)

Medium Temperature Range:-50 to +150°C (-58 to +302°F)

Max Process Pressure:PN 40, Class 150, 20K

Wetted Materials:Measuring tube 1.4435 (316L), Connection 1.4435 (316L)

Hygienic Certifications:3-A, EHEDG conform, large range of hygienic connections

Process Recovery:Fast recovery from CIP/SIP, self-drainable

Transmitter:Remote version with up to 4 I/Os

Hygienic Housing:IP69 protection

Documents: Product Manual , Product Specs

Product Description

The E+H Proline Promass S 500 Coriolis flow meter is designed for food and beverage applications requiring optimal cleanability. The self-drainable single-tube system ensures careful treatment of fluids while providing easy cleaning. With its innovative remote transmitter, it maximizes installation flexibility and operational safety in demanding environments.

Available in 3/8 to 2in sizes (DN 8 to 50). 3-A and EHEDG conform with a large range of hygienic process connections. Fast recovery from CIP/SIP processes. Mass flow accuracy ±0.10%, density accuracy ±0.0005 g/cm³.

Remote version with up to 4 configurable I/Os. Hygienic sensor connection housing with IP69 protection. Heartbeat Technology ensures process safety at all times.
