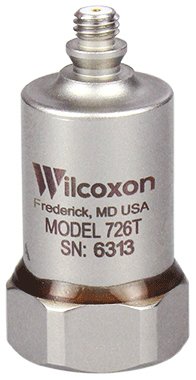

The Wilcoxon Sensing Technologies 726 series compact piezoelectric accelerometer is designed for long-term, reliable operation in industrial environments. It is constructed with durable 316L stainless steel and features a 10-32 tapped hole for mounting, with an SF1 stud included for convenient installation. The series is equipped with a 10-32 coaxial output connector and an R1 mating connector, ensuring stable signal transmission.

A key distinction within the 726 series is its grounding and isolation design: the 726 model is case grounded (with a side connector), while the 726T model is base isolated (with a top connector), allowing flexibility to match different application requirements. The 726 series accelerometer is manufactured in an ISO 9001 certified facility, guaranteeing consistent quality and compliance with industry standards.

Features

• Dynamic vibration (IEPE) sensor output for accurate vibration measurement
• Grounding and connector options for versatile application:
  • 726: Case grounded, side connector
  • 726T: Base isolated, top connector
• 100mV/g sensitivity with ±5% tolerance for reliable data collection
• 80g peak acceleration range to meet diverse industrial monitoring needs
• Frequency response:
  • ±5%: 2 to 10,000Hz
  • ±10%: 1 to 12,000Hz
  • ±3 dB: 0.6 to 15,000Hz
• 32kHz resonance frequency for stable performance at high frequencies
• 100Ω max output impedance for efficient signal transmission
• 500g peak vibration limit and 5,000g peak shock limit for strong environmental adaptability
• Compact design suitable for installation in space-constrained areas
• 316L stainless steel construction for corrosion resistance and long service life
