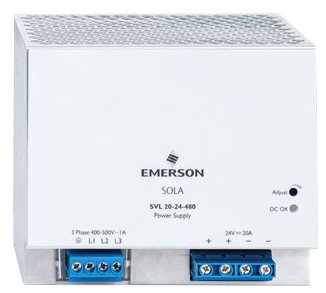

The SolaHD SVL Series Three-Phase Power Supply is ideal for high volume, controlled environment applications where essential features are the only requirement. The DIN rail mounting capability provides quicker and easier installation while allowing for design flexibility. The three-phase input version is available with 24VDC output, from 5A (120W) to 40A (960W). Many of these models come equipped with Class I Div 2 certification for hazardous location environments.

Applications

• Industrial manufacturing
• Food and beverage
• Petroleum refining
• Chemical processing
• Oil and gas production

Features

• Protects from:
  • Short circuit (SCP)
  • Overvoltage (OVP)
  • Overcurrent (OCP)
  • Overheating (OTP)
• Power factor correction
• Convection cooling
• LED Diagnostic Indicator for DC OK, SCP, OVP, OCP, and OTP
• All models certified:
  • cULus Listed, Ind. Control Equipment, E61379
    • UL 508, CSA C22.2 No. 107.1
  • cRUus Recognized Component, ITE, E137632
    • UL 62368-1/CSA C22.2 No. 62368-1
    • UL 60950-1/CSA C22.2 No. 60950-1
  • CE UK CA
    • IEC/EN62368-1
  • CB Certificate: IEC/EN 62368-1, IEC/EN 60950-1
• SVL524480, SVL1024480, and SVL2024480 models certified:
  • CSA Hazardous Locations, 602023
  • ANSI/ISA-12.12.01/CSA 213, Class I, Div 2 Groups A, B, C, D
