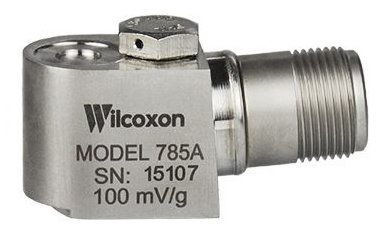

The Wilcoxon Sensing Technologies 785A compact industrial accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed and corrosion-resistant. It features a 1/4-28 captive hex head screw with 0.046" diameter safety wire hole (included) for mounting, and has a MIL-C-5015 2-pin output connector. The 785A is case isolated, and has 100mV/g sensitivity and ±10% sensitivity tolerance.

The 785A is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 100mV/g sensitivity
• ±10% sensitivity tolerance
• 1 to 12,000Hz frequency response
• 1/4-28 captive hex head screw with 0.046" diameter safety wire hole
• MIL-C-5015, 2-pin output connector
• R6 type mating connector
• 80g peak FS range
• 30kHz resonance frequency
• Reverse wiring protection
• 316L stainless steel construction
• SF6 mounting stud included
