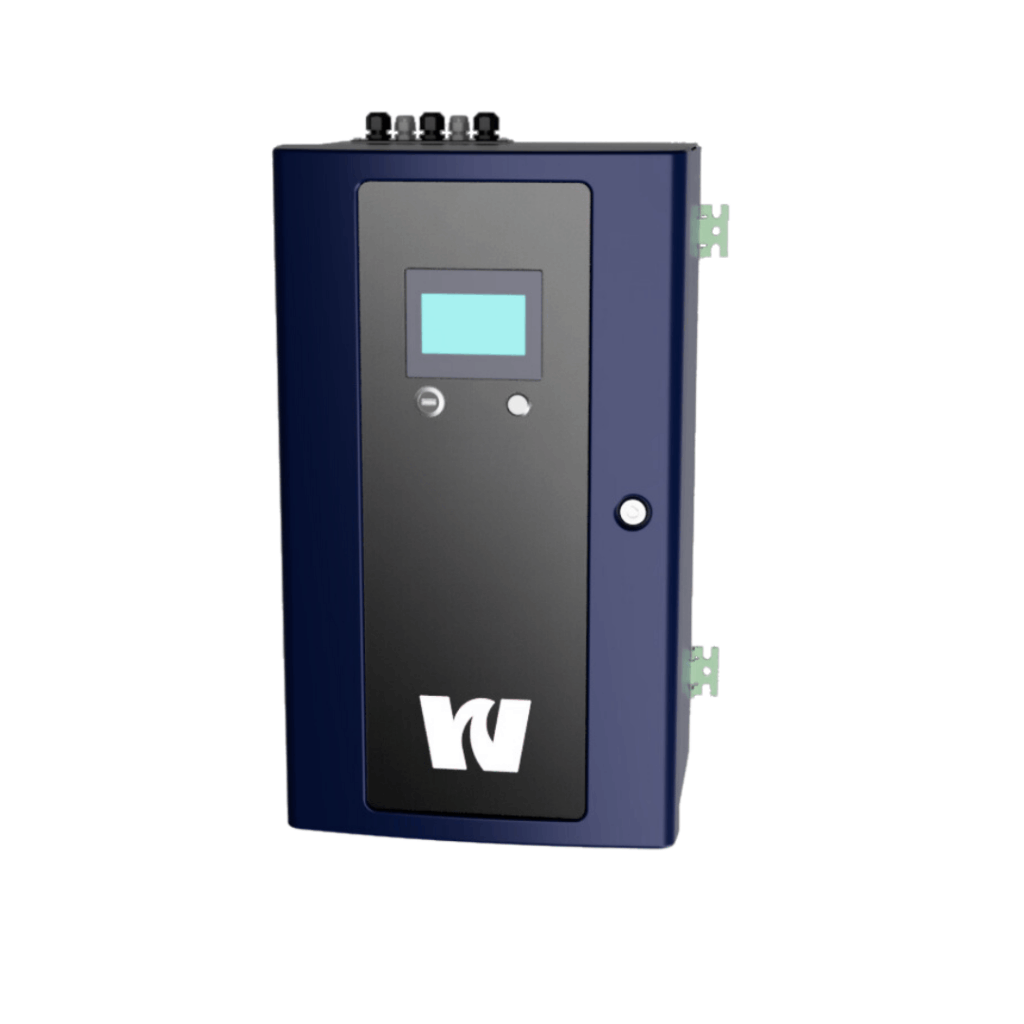

The Waltron 3141 Silica Analyzer delivers reliable, easy-to-maintain online analysis of dissolved silica in ultrapure water. It features an intuitive color touchscreen interface and a fast-loop reservoir for accurate, flow-independent measurement. It is optimized for use in make-up water, condensate, boiler feedwater, and steam generation applications.

Features

• Measuring ranges: 0-1000ppb, 0-5ppm, 0-150ppm
• Accuracy: ±1ppb or ±2% of reading (whichever is greater)
• Supports 1-2 sample streams
• Adjustable 20 minute cycle time
• 4-20mA (galvanic isolator option) or 0-5V analog outputs
• 2 or 4 configurable alarms
• Ambient operating temperature: 50 to 115°F
• Sample temperature range: 40-130°F
• Sample flow rate: 100-500ml/min at atmospheric pressure
• Power supply: 110-220VAC
• IP65/NEMA4X rated industrial enclosure
