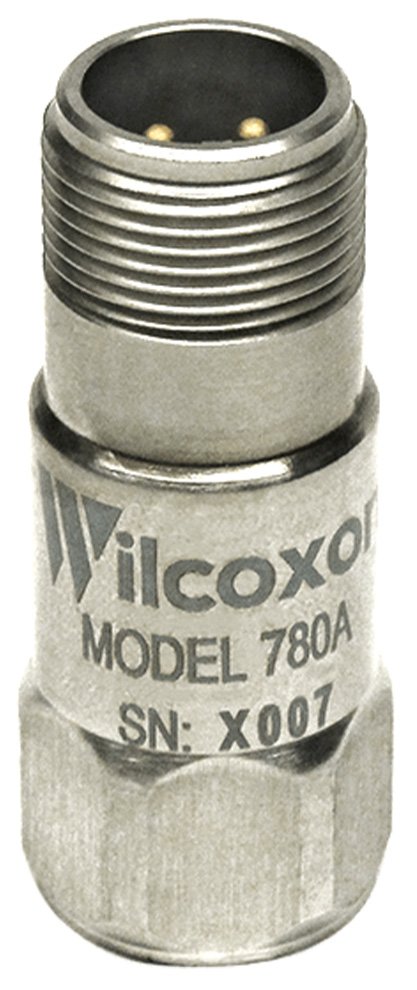

Wilcoxon Sensing Technologies 780A Series compact accelerometer is engineered for long-term reliable use across oil & gas, power generation, manufacturing, and chemical industries—sectors requiring durable equipment for harsh environments. It is constructed with corrosion-resistant 316L stainless steel, features a 1/4-28 UNF tapped hole (SF6 mounting stud included) and MIL-C-5015 connector, and offers 10 or 100mV/g sensitivity to support versatile vibration monitoring of pumps, motors, and other critical machinery.

The 780A is API 670 compliant and is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• Sensitivity:
  • 780A, 780A-D2, 780A-IS: 100mV/g
  • 780A-10: 10mV/g
• ±5% sensitivity tolerance
• 0.5 to 14,000Hz frequency response
• Hazardous area approvals:
  • 780A: Non-approved
  • 780A-10: Non-approved

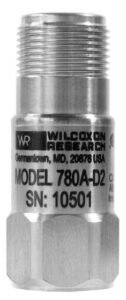

  • 780A-D2: Class I, Div 2, Zone 2; ATEX II 3G Ex nA
  • 780A-IS: Class I,II,III, Div 1, Zone 0; ATEX II 1G Ex ia; IECEx Ga Ex ia
• PZT, shear sensing element design
• MIL-C-5015, 2-pin connector
• 80g peak FS range
• 30kHz resonance frequency
• 316L stainless steel construction
• SF6 mounting stud included
